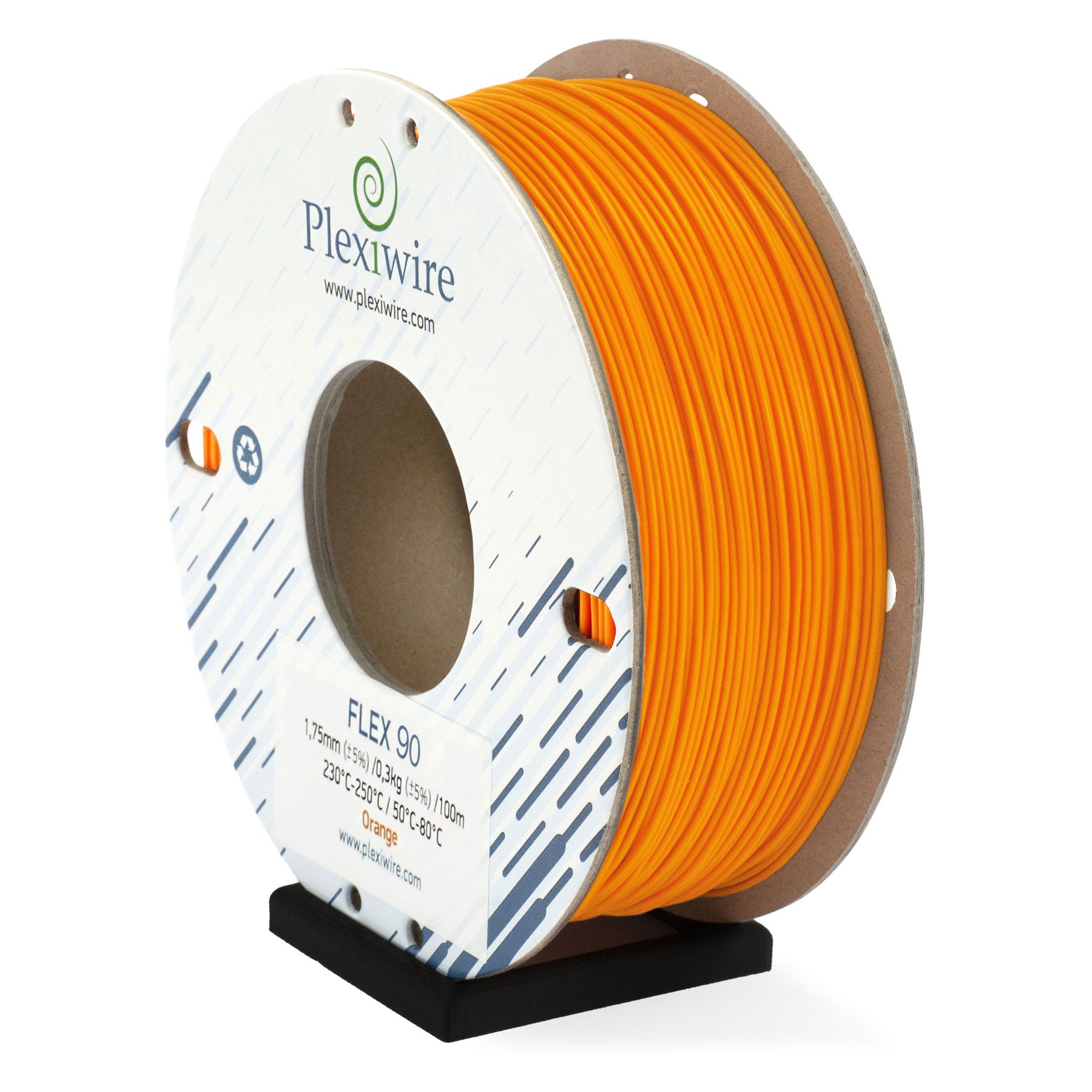

Orange Flex Filament 1.75 for controlled flexible printing

Orange flex filament 1.75 in a 300 g (100 m) spool is a compact option for flexible 3D printing in smaller projects.

Flexible filament behaves differently from rigid materials, both during printing and in how parts perform afterward.

Where flexibility becomes useful

With orange flex filament 1.75, parts bend, compress, and return to shape under pressure.

In practice, flex filament orange is often used for protective covers, soft-contact parts, and impact-related components.

Finding a stable printing setup

Flexible materials require careful setup, but once tuned, flex filament 1.75 prints in a steady and predictable way.

The filament flows evenly and layers build consistently.

A smaller spool for controlled printing

A 300 g spool helps keep material usage under control and supports testing or short runs.

Even at this size, flex filament 1.75 maintains stable output.

A bright, functional color

Orange flex filament offers a clear, visible tone that highlights shapes and details.

The color remains even across printed surfaces.

For flexible and practical applications

Orange flex filament is suited for parts that need to bend, compress, or handle repeated stress.

Orange flex filament 1.75 in a 300 g (100 m) spool fits well into smaller workflows.

Technical specifications

  • Manufacturer: Plexiwire
  • Material: FLEX TPU 90A
  • Filament diameter: 1.75 mm
  • Extruder temperature: 230°С - 250°С
  • Platform temperature: 50°С - 80°С
  • Net weight: 300 g
  • Filament length: 100 m
  • Filament color: Orange

Technical data of the spool

  • Outer diameter: Ø 150 mm
  • Mounting hole diameter: Ø 55 mm
  • Spool width: 60 mm
  • Spool material: cardboard

Application

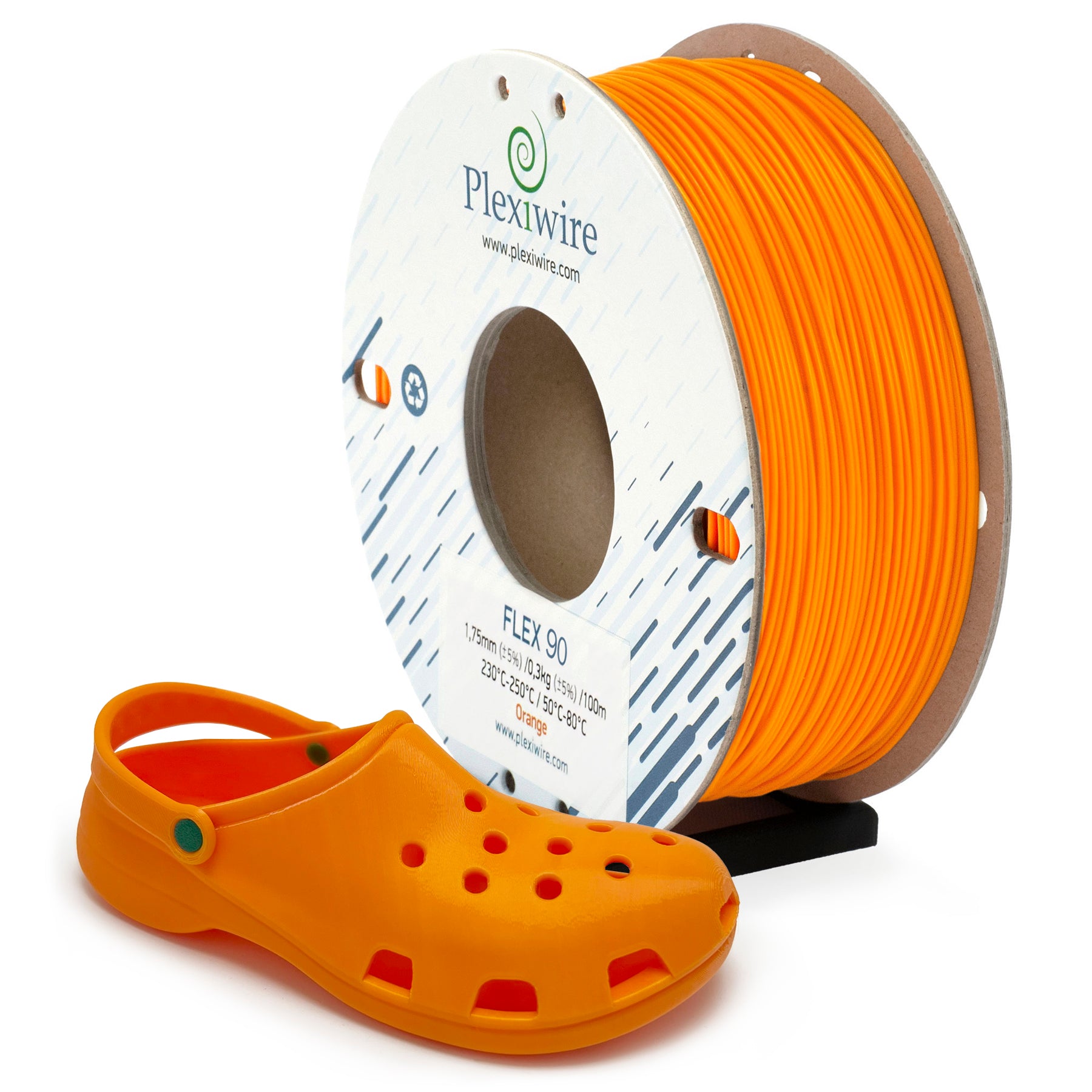

FLEX filament is used for printing protective flexible elements for machine and mechanism units, as well as oil seals and other types of sealing elements. Naturally, it is also used for prototyping rubber products. Also, any damper and vibration protection elements are printed from FLEX. Given its properties, the filament can be used to print any product, the application of which requires such a property as flexibility. For example, elements of footwear and automotive parts.

Printing Guidelines

The flexibility of FLEX plastic requires a special approach when printing.

First, it is not fast plastic. It needs to need print slowly - do not set the filament feed faster than 30 mm / s.

Secondly, if you have a bowden feed printer, it will be much more difficult to print than with a direct feed. Judging by the feedback from our customers, printing on bowden is possible, but we recommend direct feeding, which will help to avoid difficulties in work.

Third, follow the recommendations for temperature and speed, carefully adapting them to your results, because the FLEX filament is easily deformed in the nozzle. In general, we recommend using a separate nozzle for this filament - the remnants of old filaments of other types can greatly complicate the process.

Fourth, FLEX absorbs moisture well, so it is important to observe safe storage conditions. In this case, when printing, it is better to ensure that the filament moves freely without any resistance, so that the feed mechanism does not apply force and start to “pull” the material, which can cause stretching or bending.
